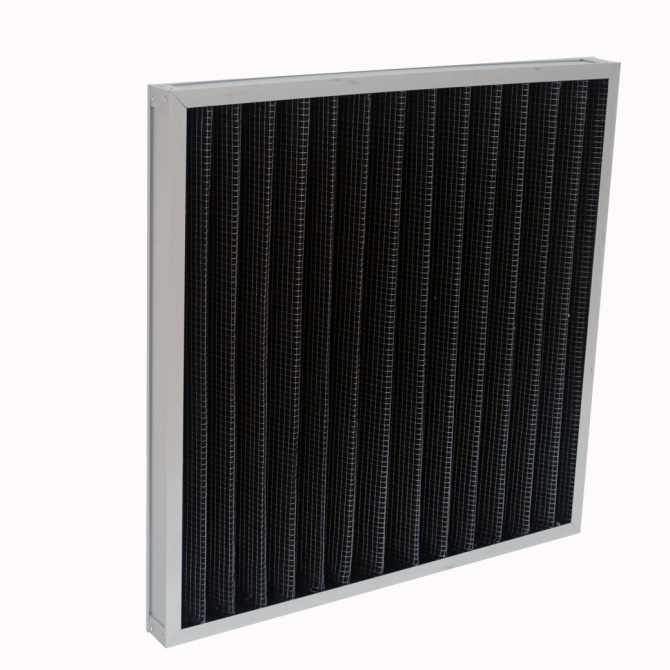

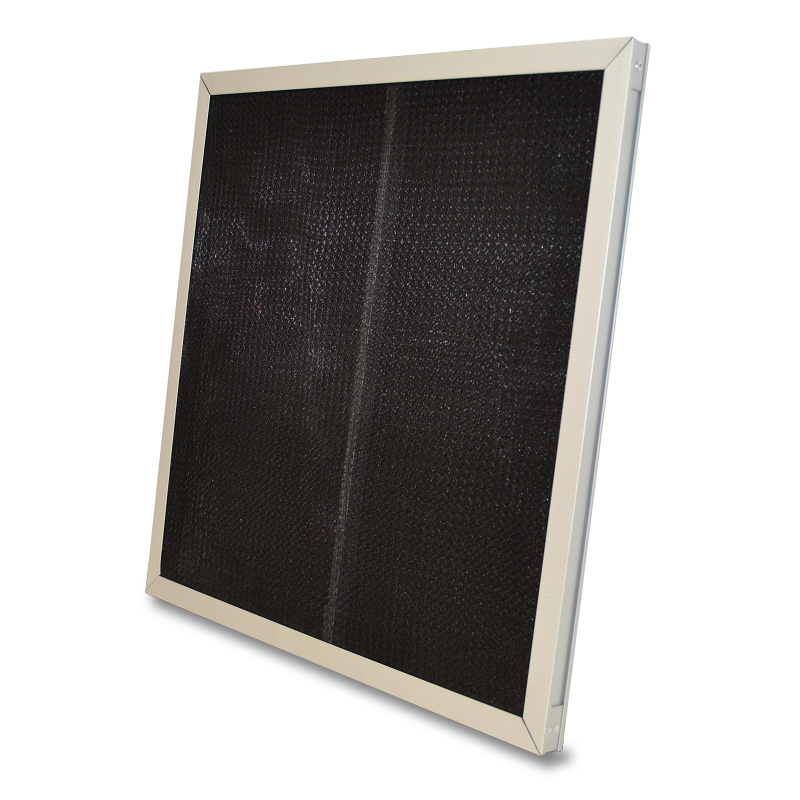

特点 Features
●价格便宜，厚度薄
●阻力小、风量大
●适用于空调系统的初级过滤
●Price cheap price, adopts thin thickness
●Responding to small resistance, air
●Applicable to air conditioning system
adopts the primary filtration
型号尺寸及其他参数
Standard specification
|
型号 model |
外形尺寸 Outside Dimensions |
额定风量 Rated air flow |
初阻力 Initial resistance |
效率（级别） Efficiency(class) |
滤料型号 Model of filter media |
|
|
ZY-8J |
295×295×10/20mm 12″×12″×1/2″/1″ |
800m3/h |
25Pa |
40% (计重法) weight |
G1 G2 G3 |
尼龙网 Nylon nets 初效过滤棉 Early effect filter cotton 波纹铝网 Corrugated aluminium nets |
|
ZY-13J |
495×295×10/20mm 20″×12″×1/2″/1″ |
1300m3/h |
||||
|
ZY-22J |
495×495×10/20mm 20″×20″×1/2″/1″ |
2200m3/h |
||||
|
ZY-16J |
595×295×10/20mm 24″×12″×1/2″/1″ |
1600m3/h |
||||
|
ZY-27J |
595×495×10/20mm 24″×20″×1/2″/1″ |
2700m3/h |
||||
|
ZY-32J |
595×595×10/20mm 24″×24″×1/2″/1″ |
3200m3/h |
||||
*可要据用户要求定制不同规格型号的过滤器
